Compatible with 75mm bowl size tripod
11.0lbs Weight Capacity
Adjustable counterbalance
Smoothly pans 360° and tilts 180°
Additional standard 1/4" screw holes

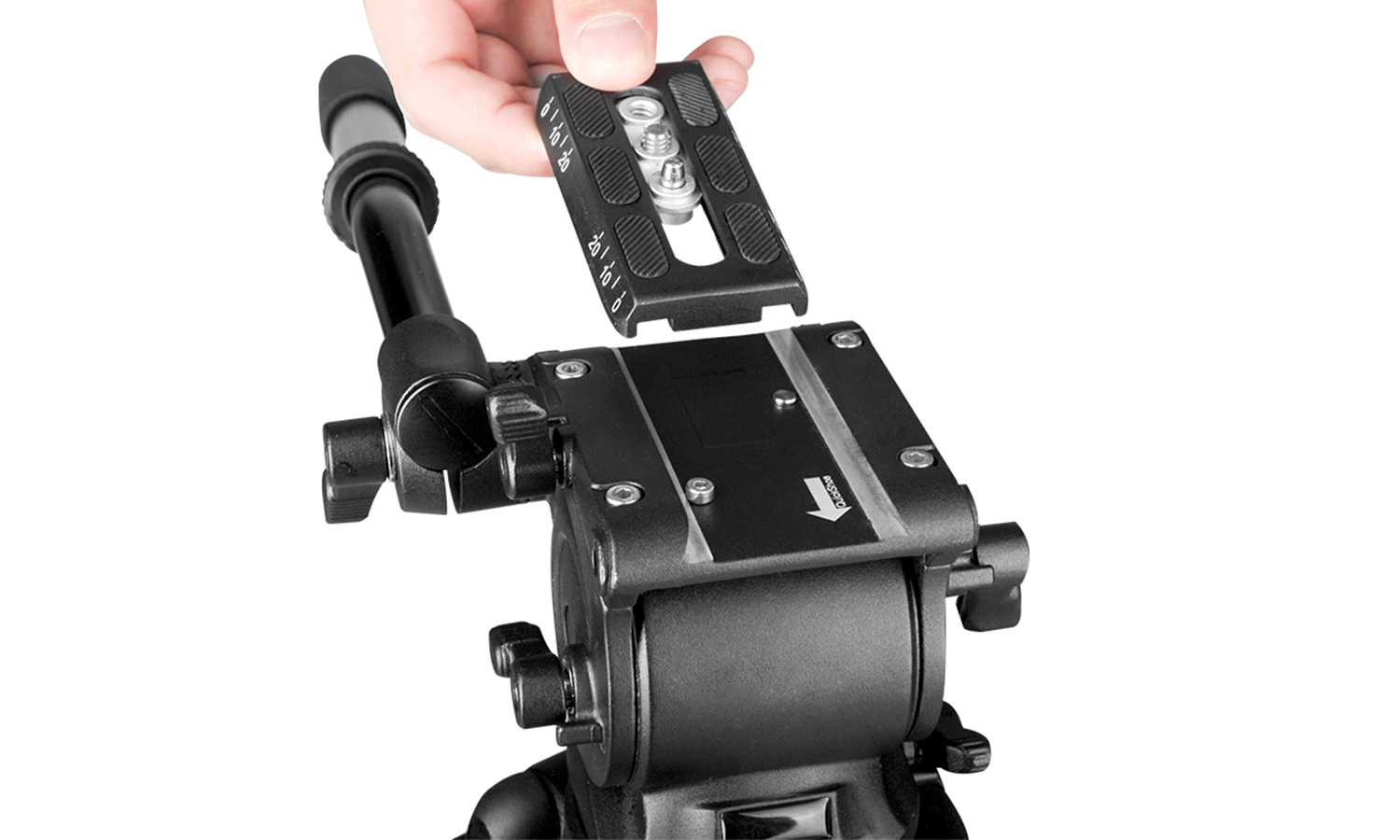

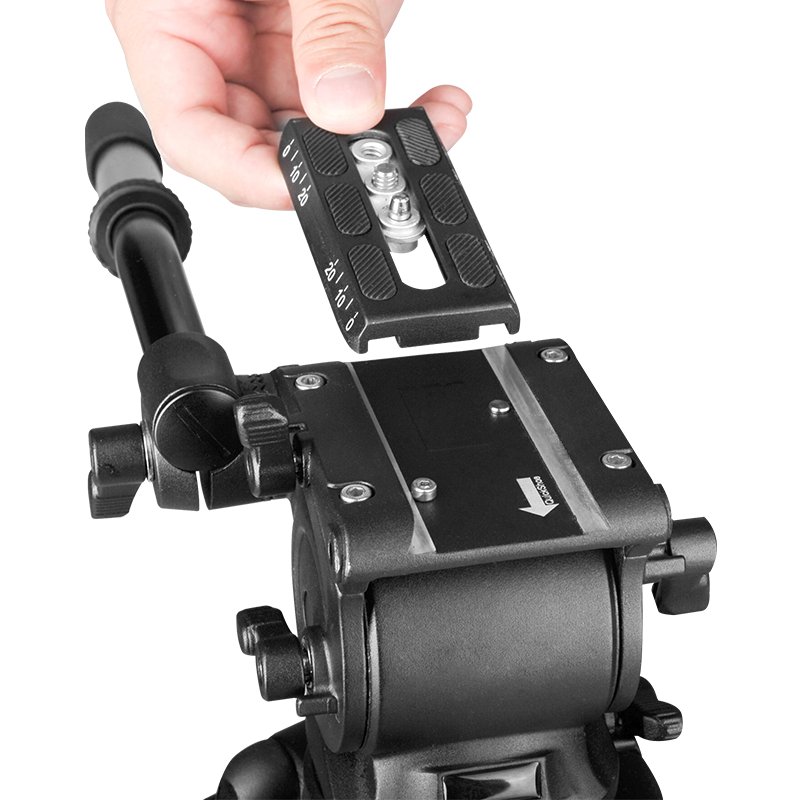

Quick Release Plate with 1/4" & 3/8" Screw

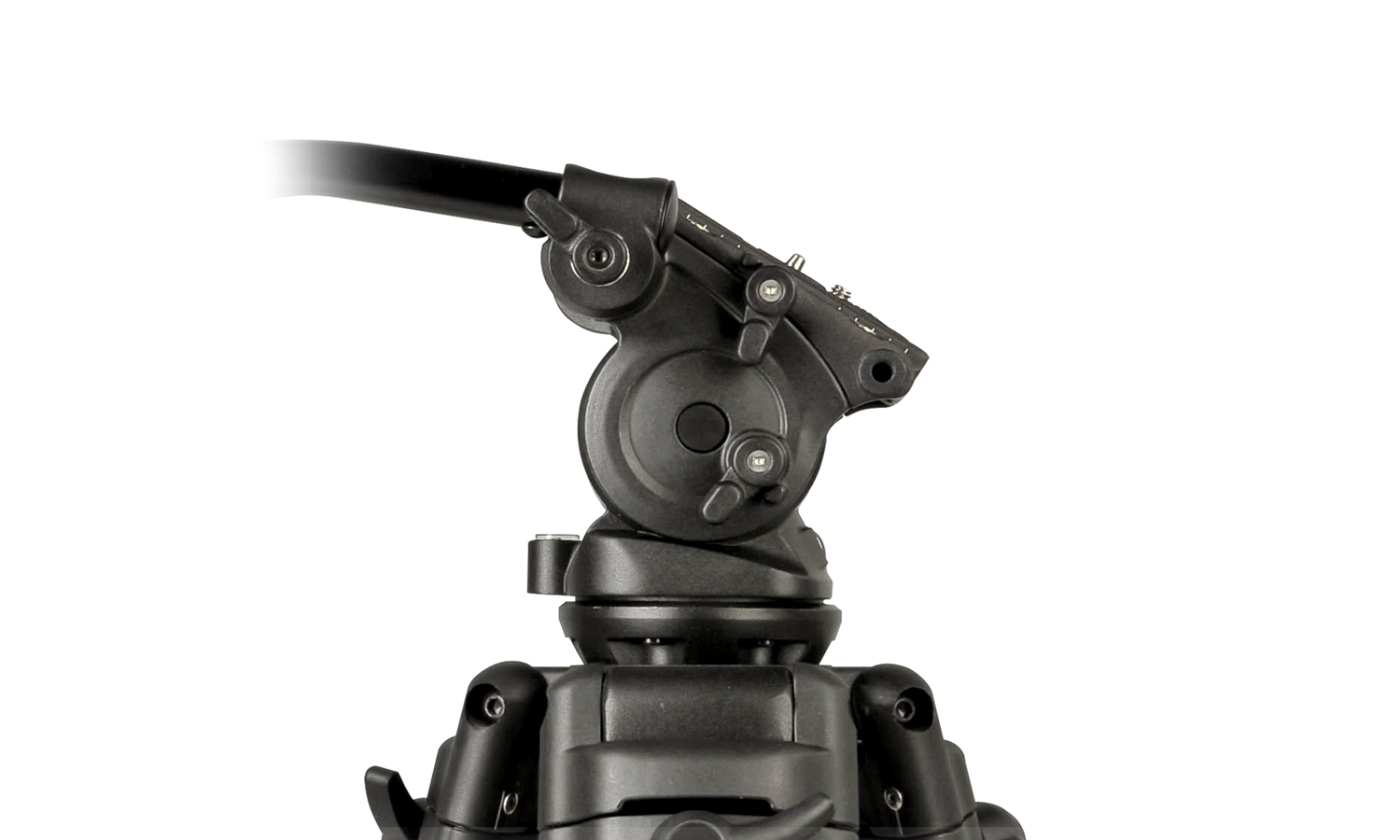

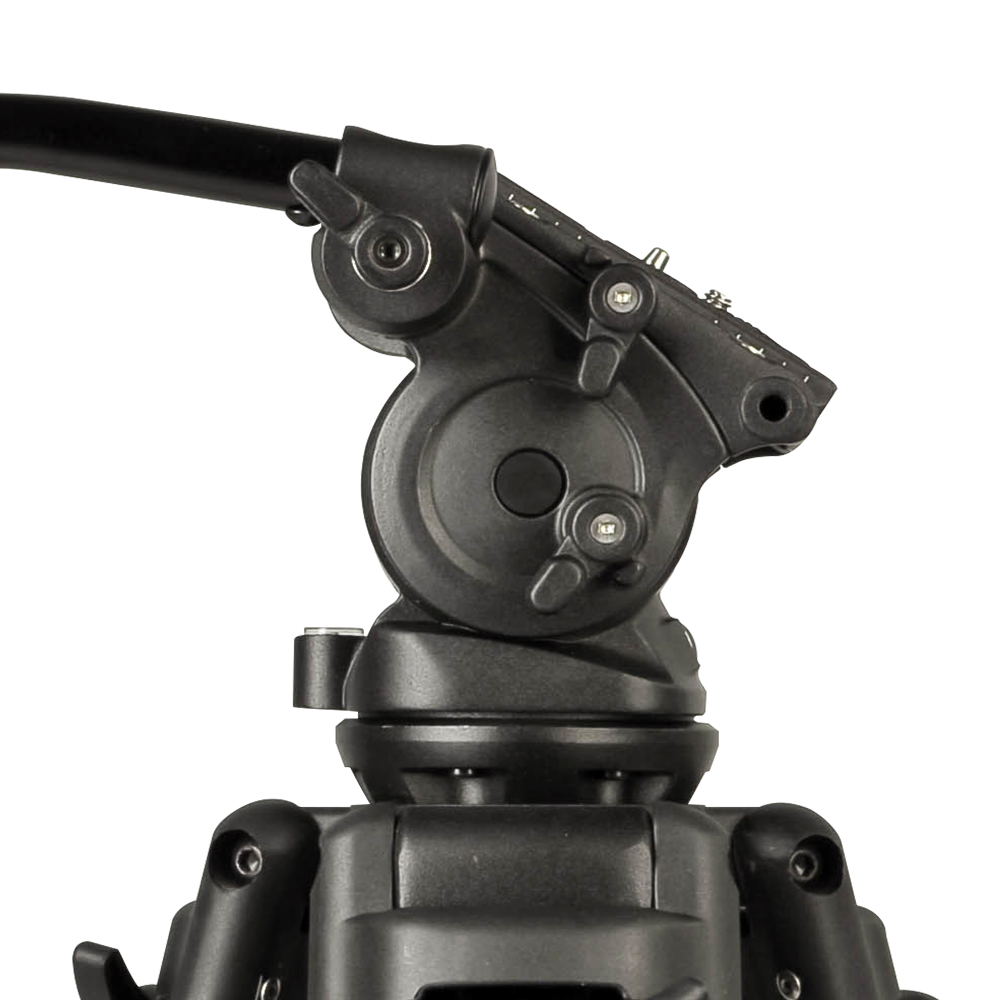

Separate pan/tilt locks and tension knobs

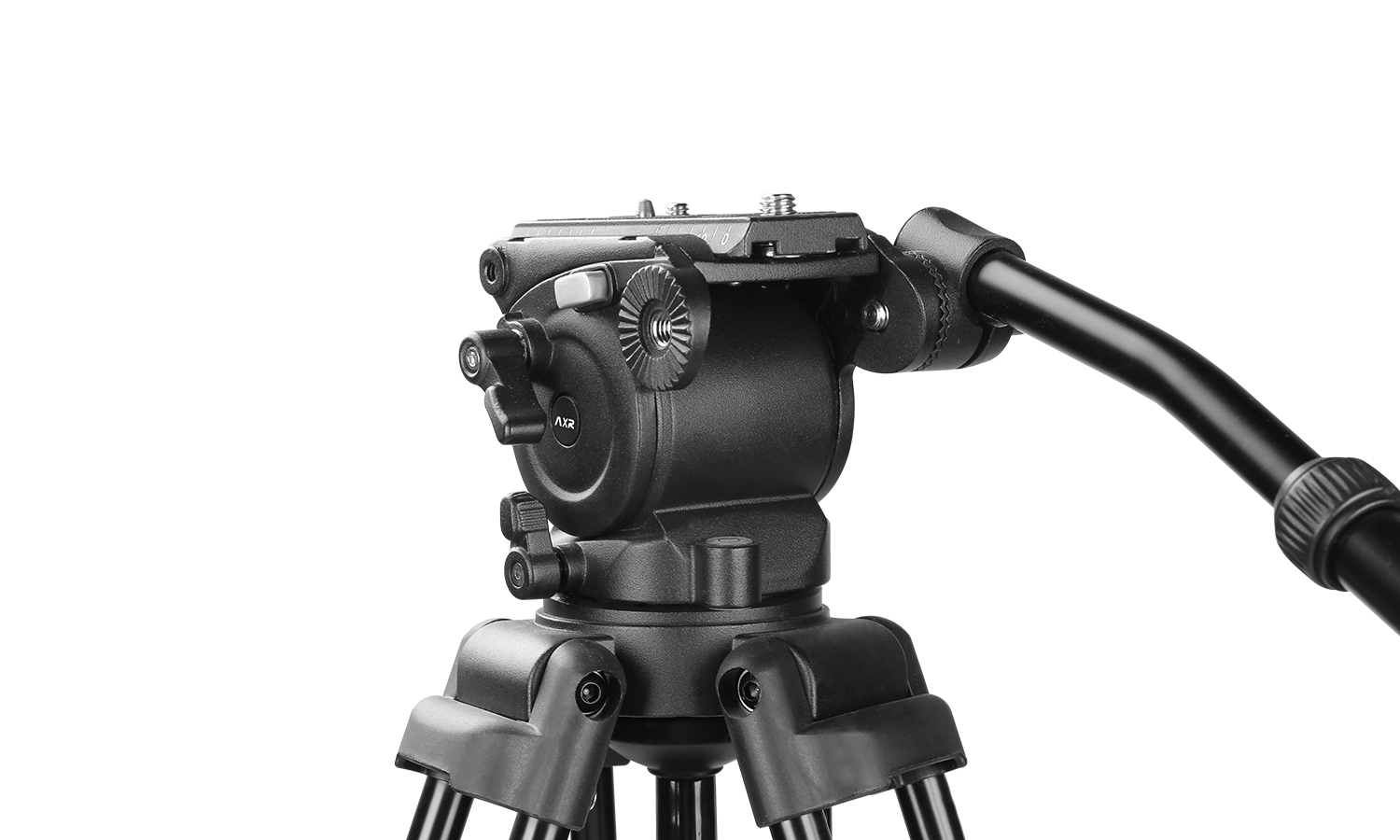

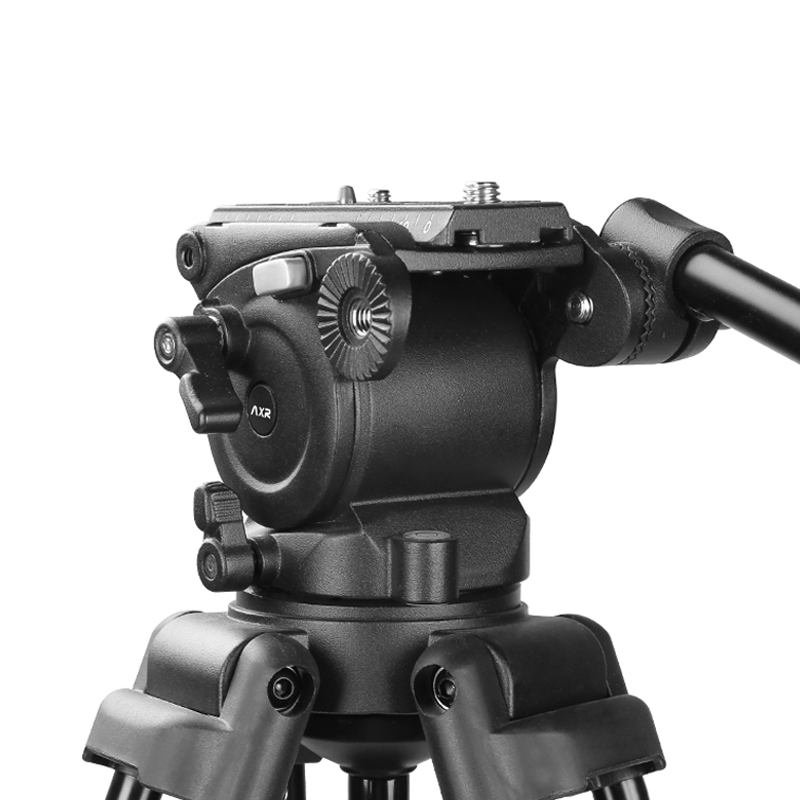

Two rosette pan bar mounts

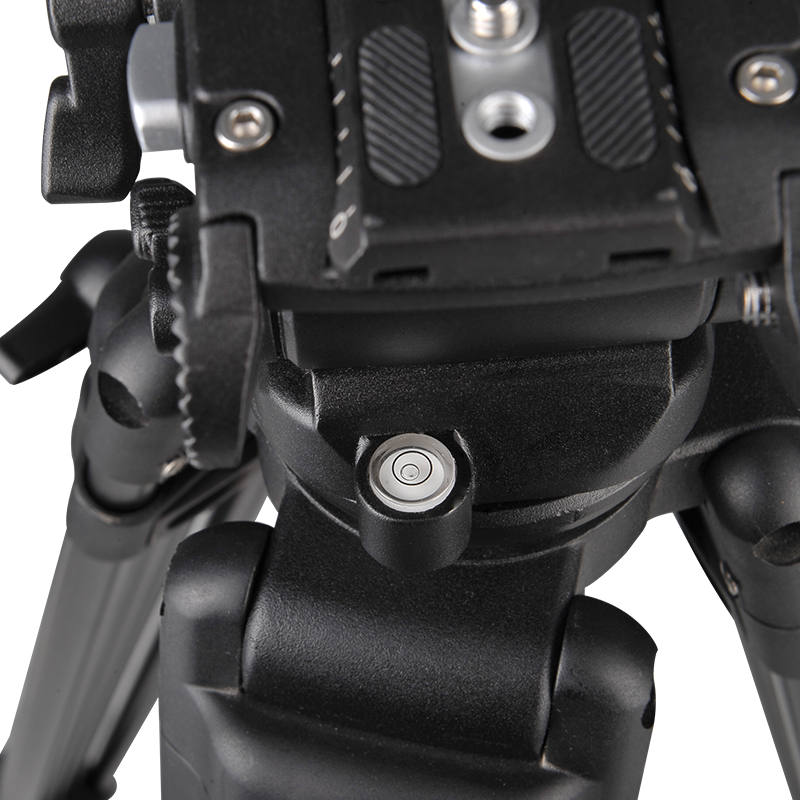

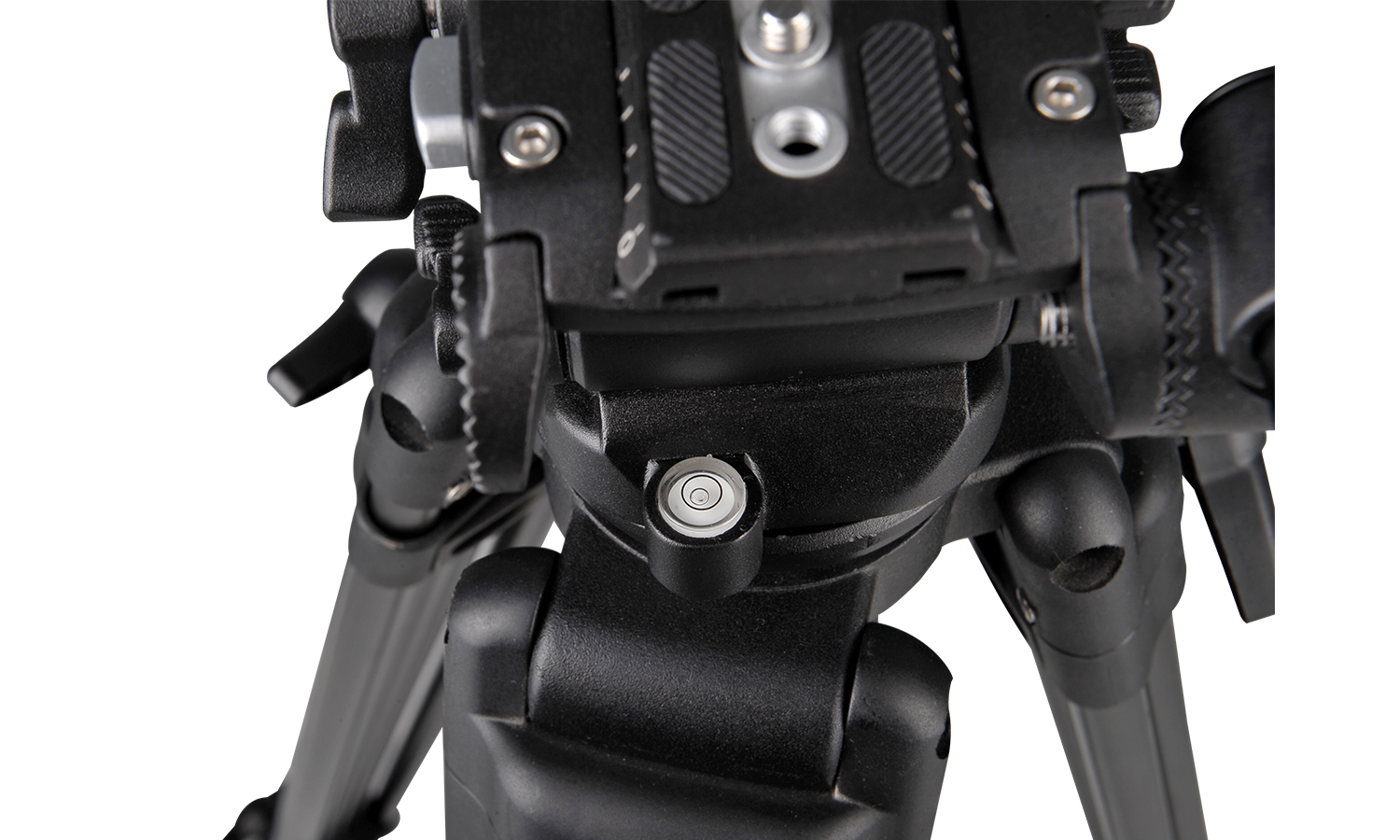

Bubble level

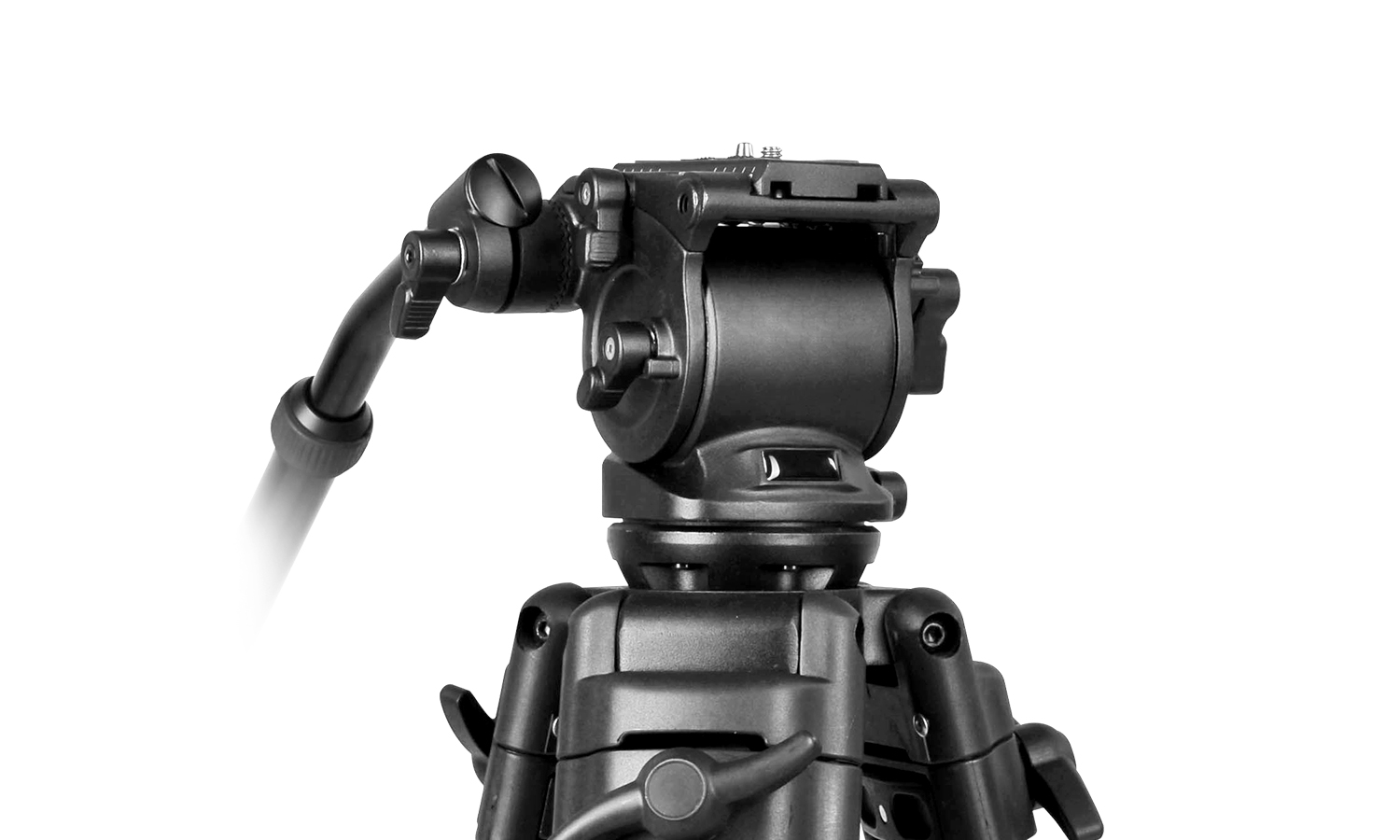

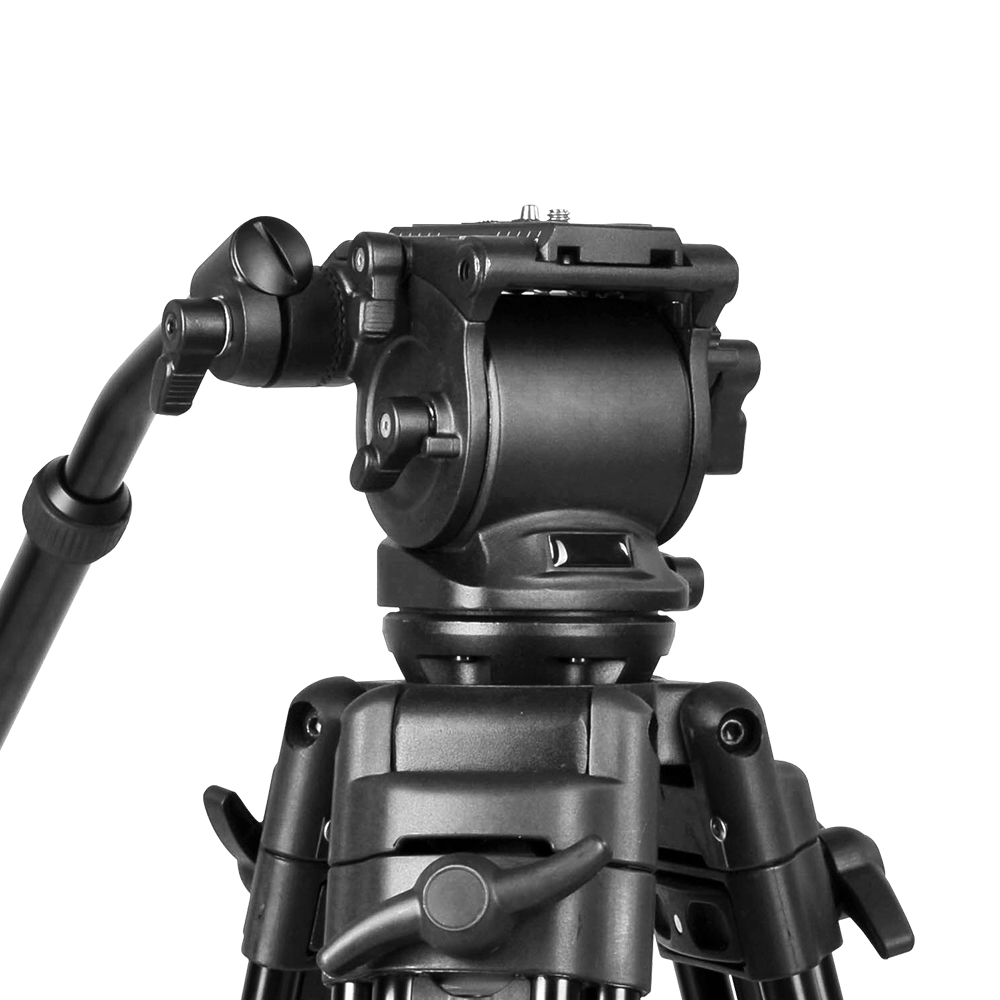

The AH30 from AXRTEC is a competitive 75mm fluid head with continuous adjustable counterbalance from 0 (no drag) to the maximum level and supports loads up to 11.0lbs. Thanks to two rosette pan bar mounts and two 1/4"-20 accessory threads's design, you can enjoy the fun of various shooting styles at will. A long sliding camera plate is included,it can be adjusted forward/backward for optimal balance with a locking pin which prevents your camera from accidentally removing.
Model | AH30 |
Payload Range | 5.0kg/11.0lbs |
Net Weight | 1120g/2.5lbs |
Counterbalance | Continuous adjustable |
Grades of Pan Drag | Fixed |
Grades of Tilt Drag | Fixed |
Bowl Size | 75mm |
Tilt Range | -70°/+90° |
Temperature Range | -40℃/+80℃ |
