Compatible with 75mm bowl size tripod
17.6lbs Weight Capacity
Adjustable Tilt drag
Additional standard 1/4" screw holes
Universal 501 plate
Separate pan/tilt locks and tension knobs
Two rosette pan bar mounts
Bubble level

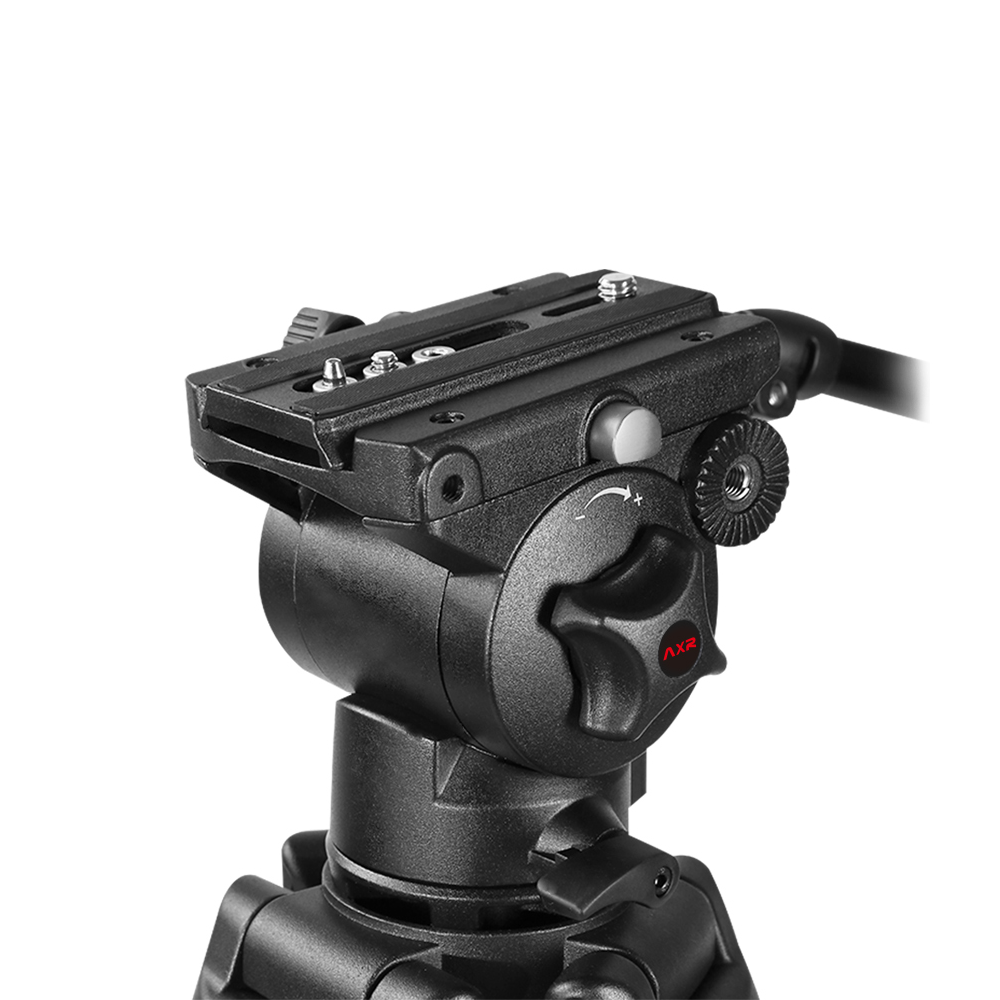

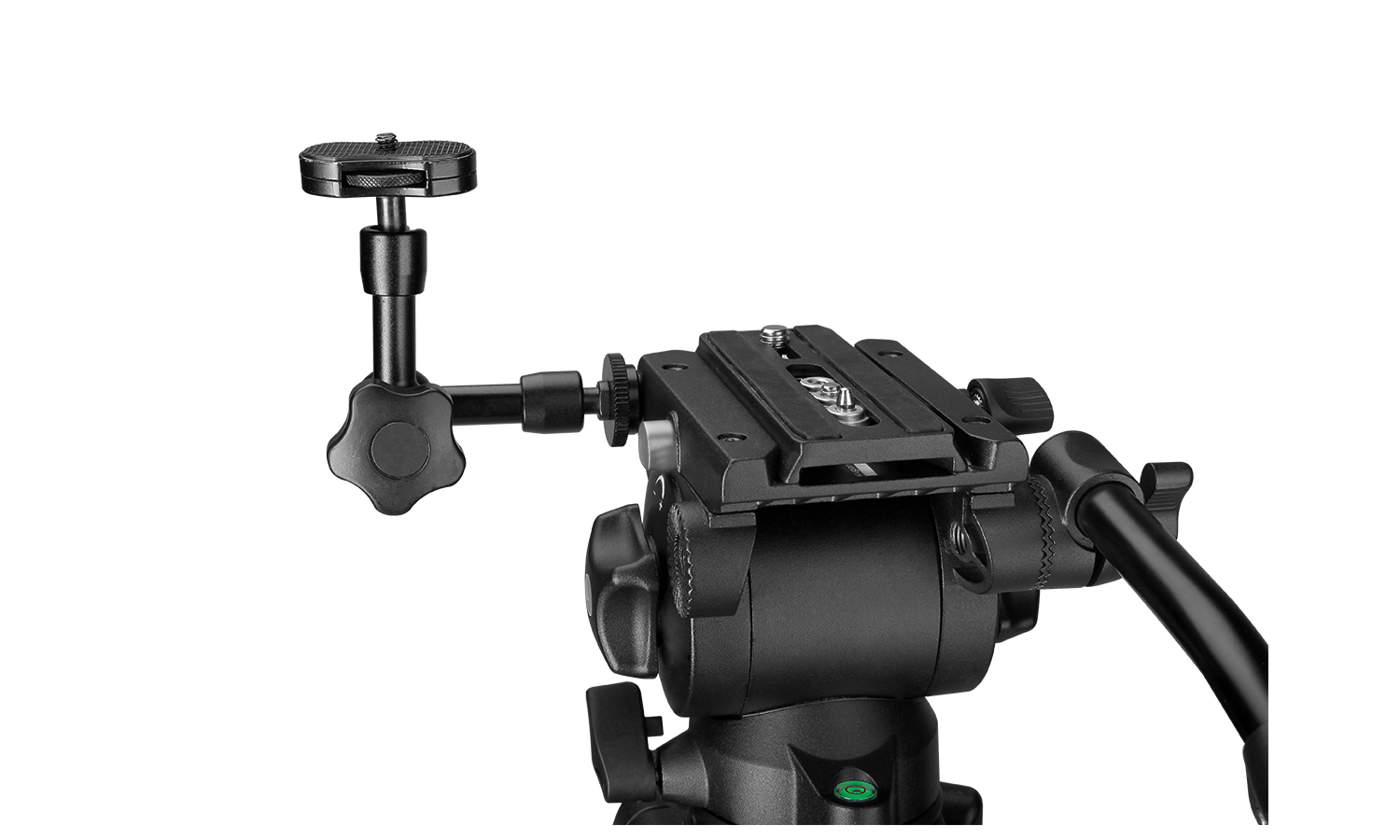

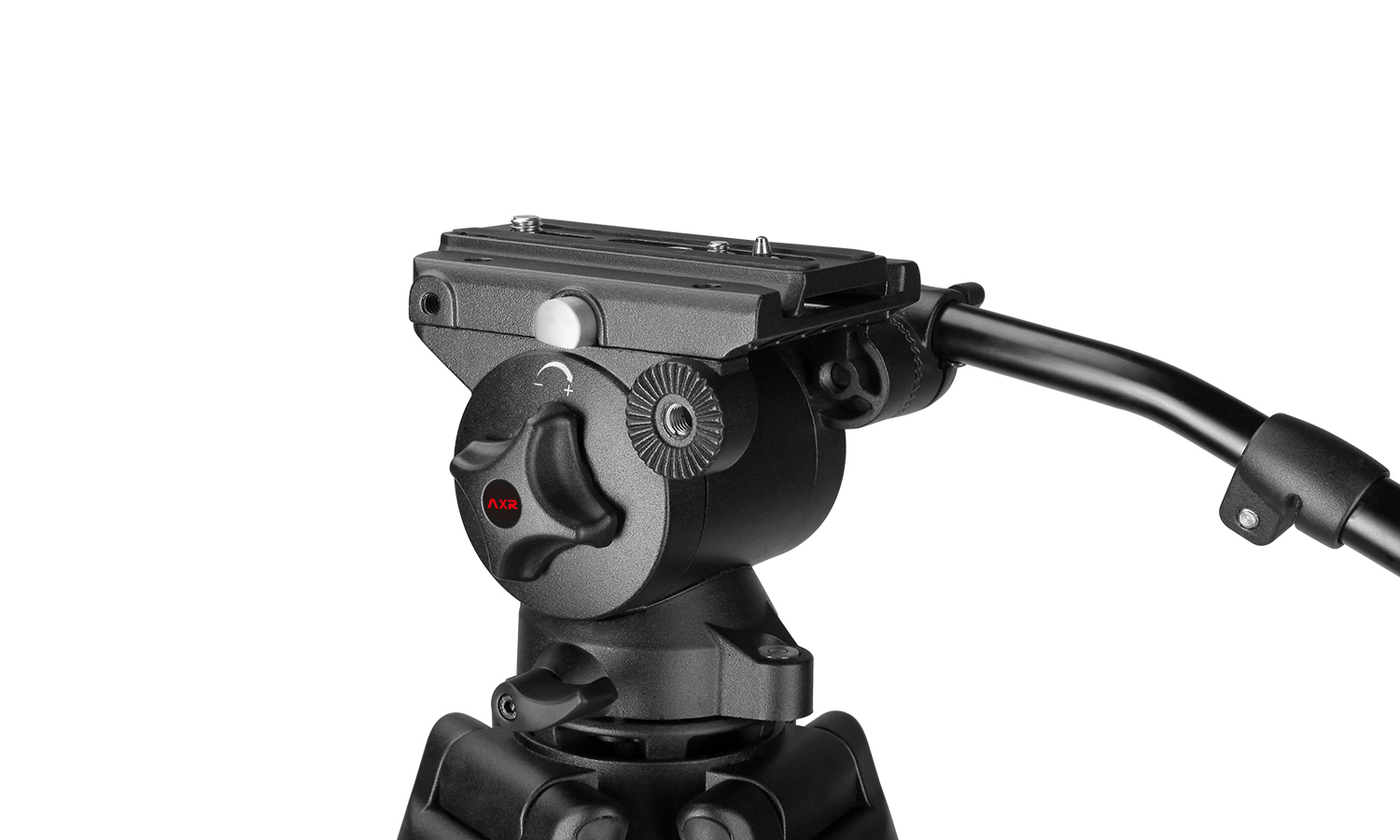

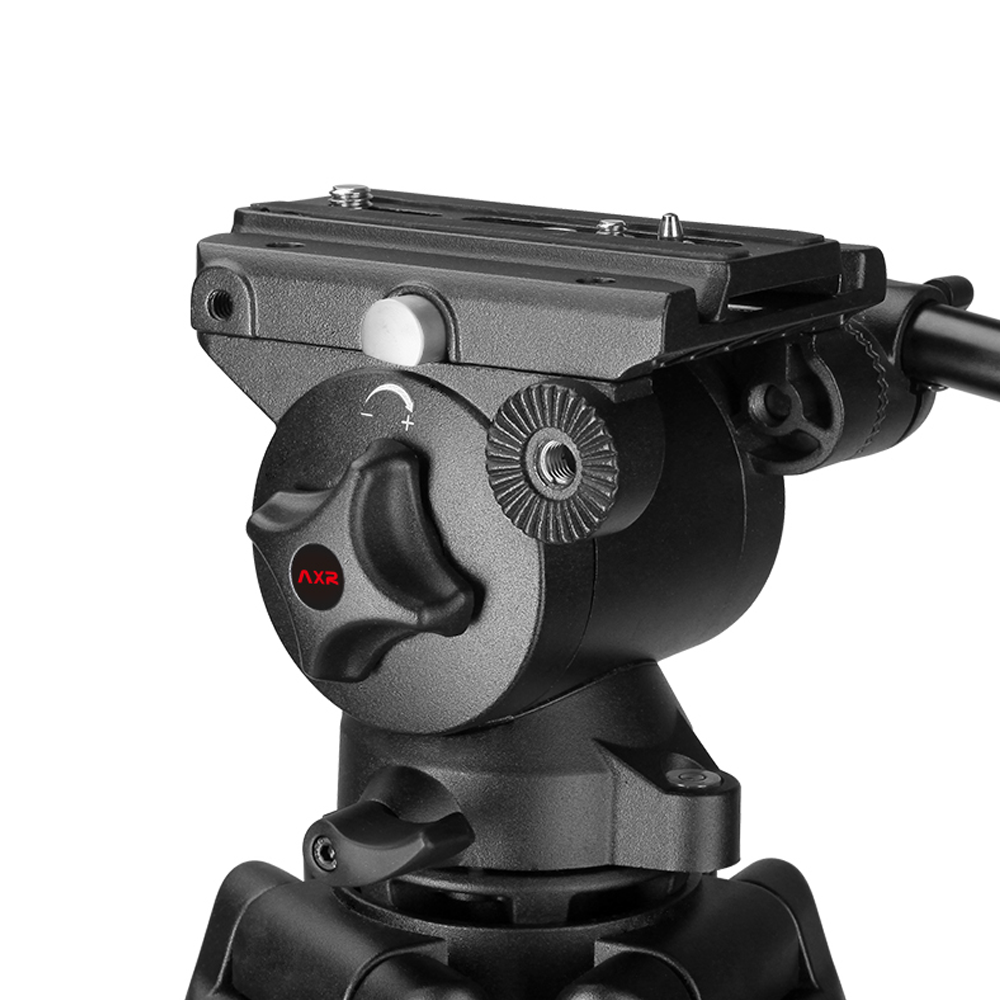

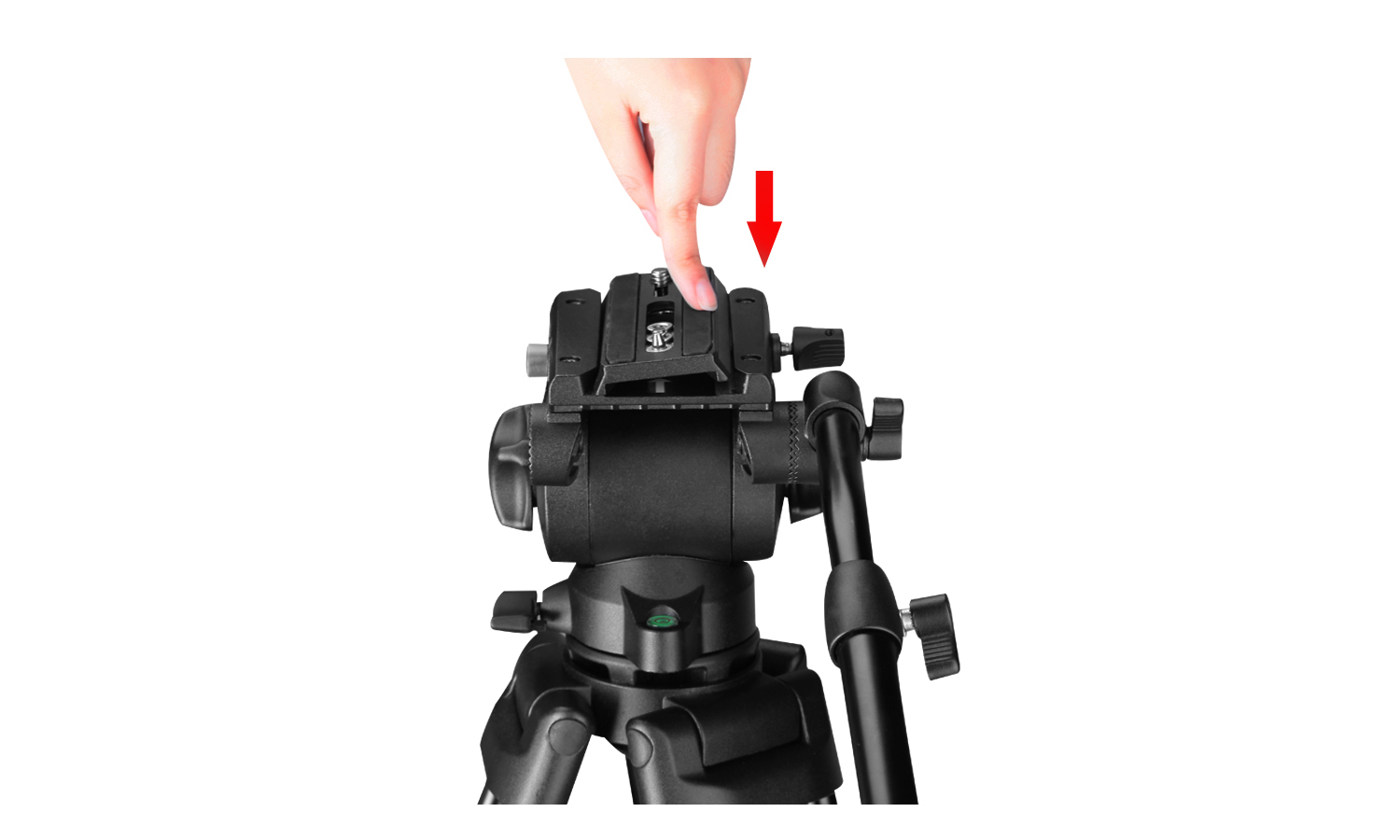

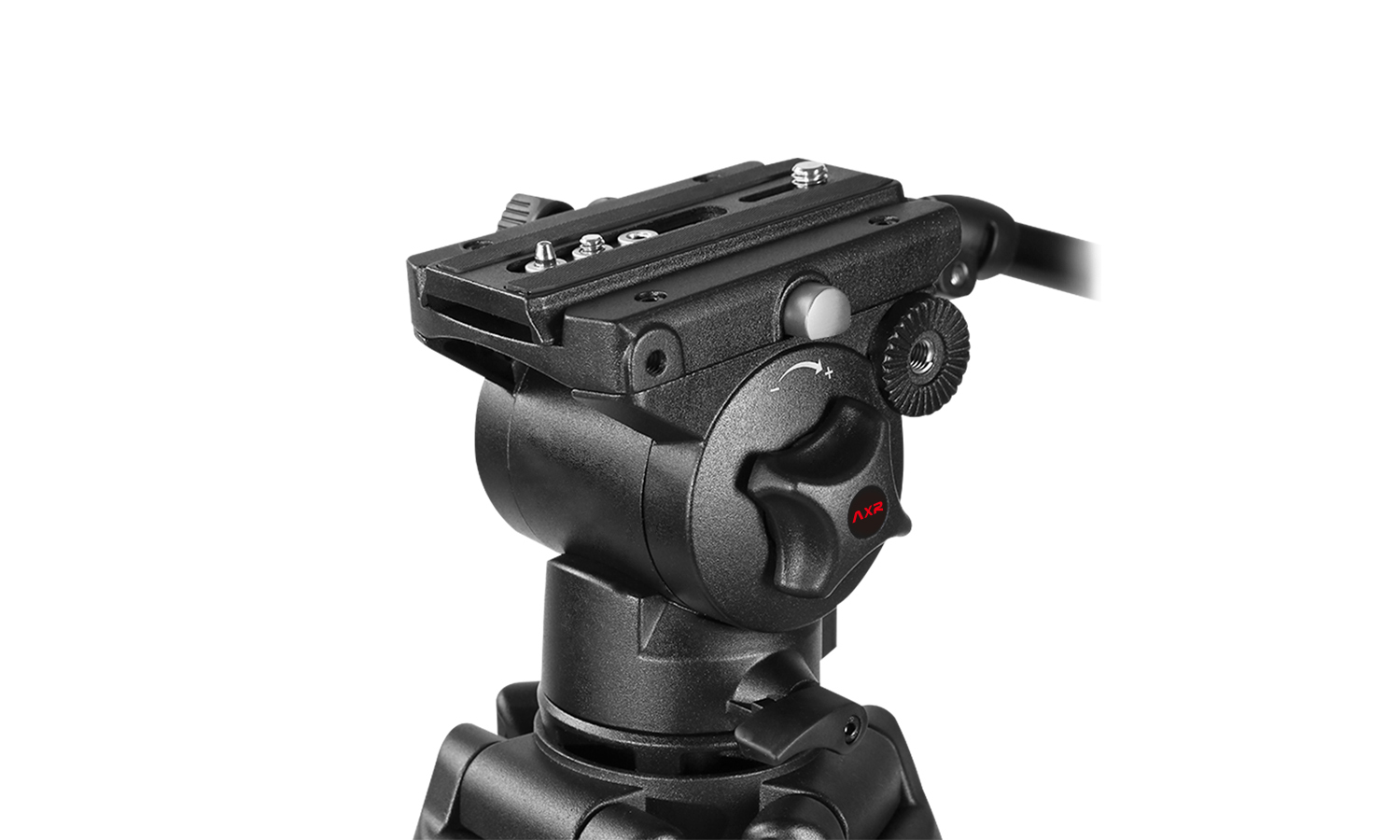

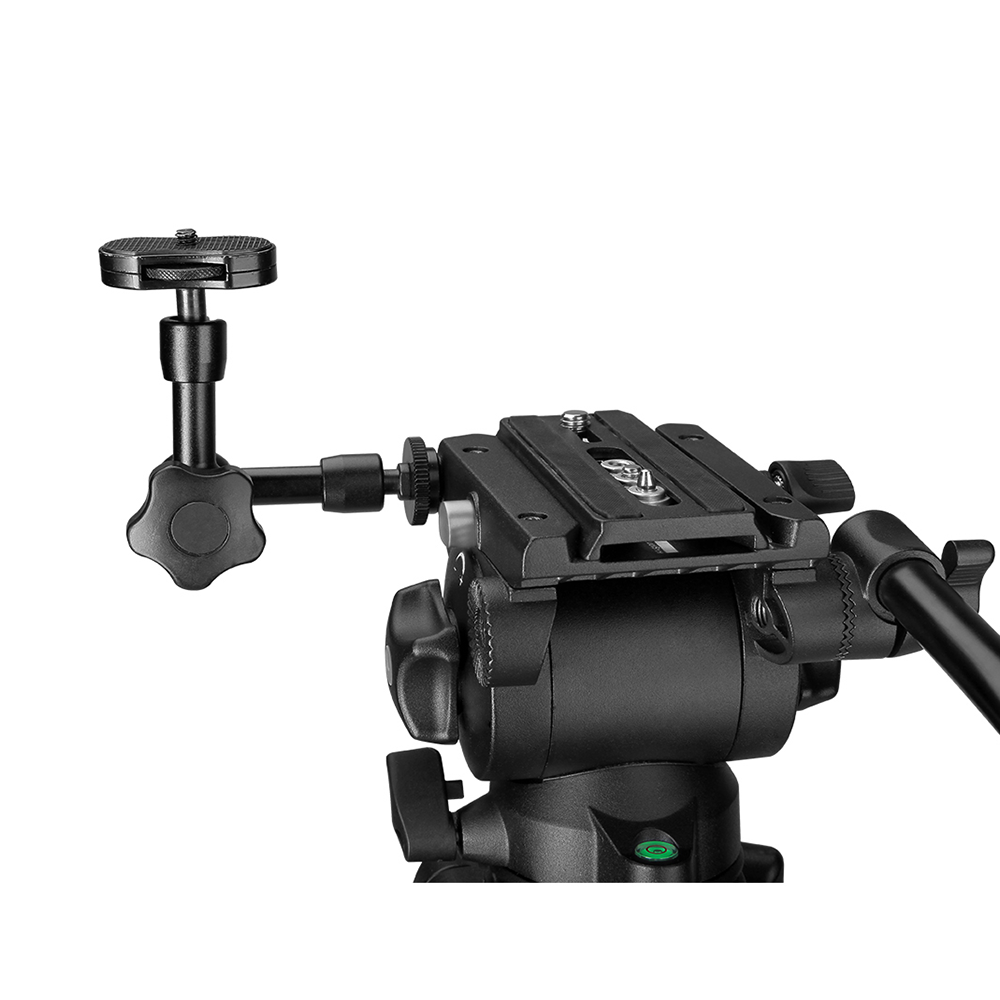

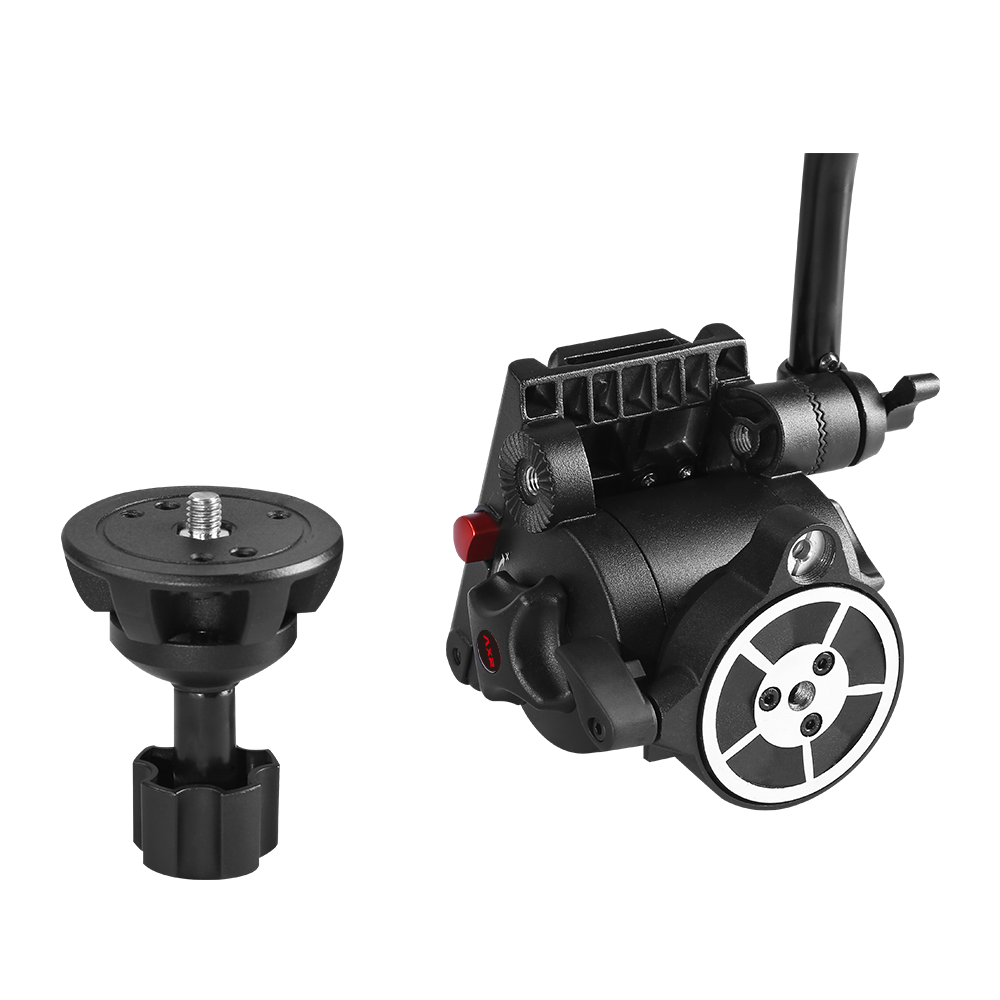

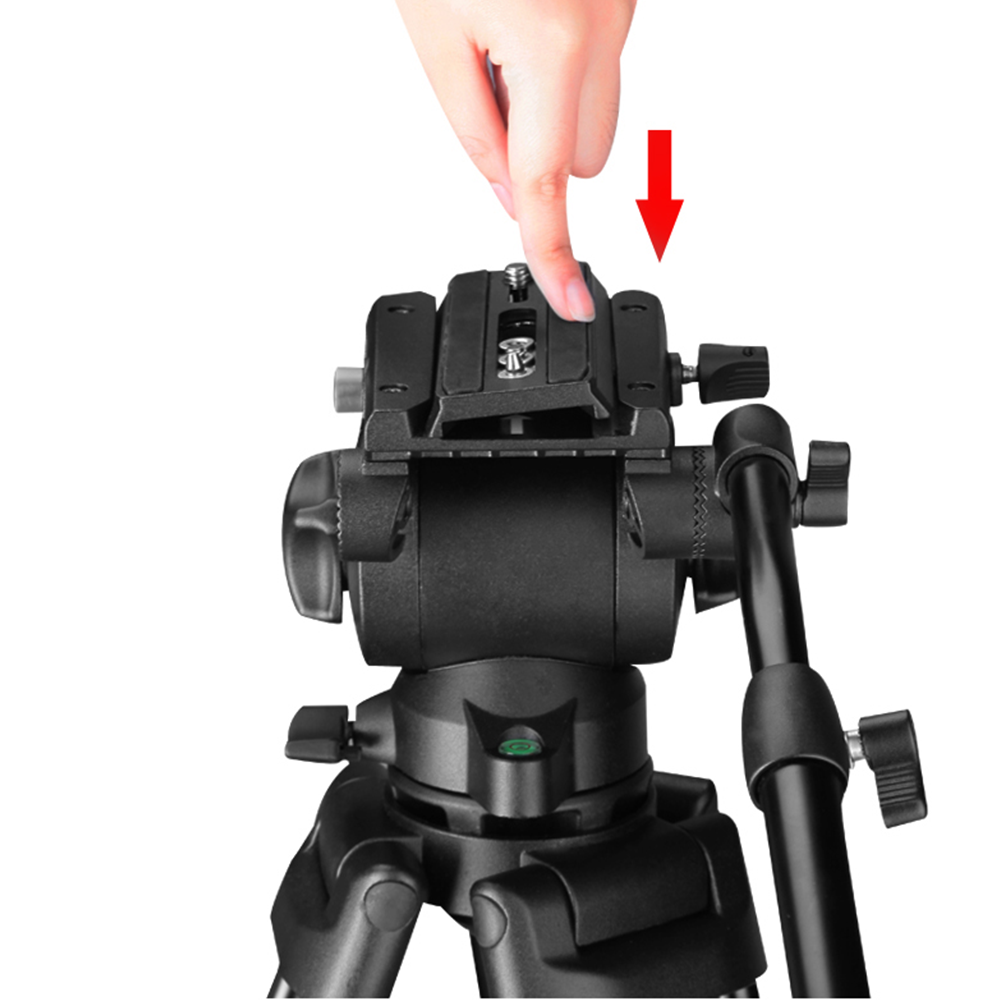

The AH80 from AXRTEC is a competitive 75mm fluid head with continuous adjustable tilt drag from minimum to the maximum level, weighting up to 17.6lbs. The side lock system on the AH80 allows the camera and sliding QR plate to click quickly into the head from above, instead of aligning and sliding in from the back. This makes it easier and safer to mount your camera on this head. It also provides two easy link 1/4" screw holes on both side of the head for attaching accessories such as a monitor, extension arm and so on. Also, the included telescopic pan bar can be attached to the right or left rosette as you like.
Model | AH80 |
Payload Range | 8.0kg/17.6lbs |
Net Weight | 1700g/3.7lbs |
Counterbalance | Fixed |
Grades of Pan Drag | Fixed |
Grades of Tilt Drag | Variable |

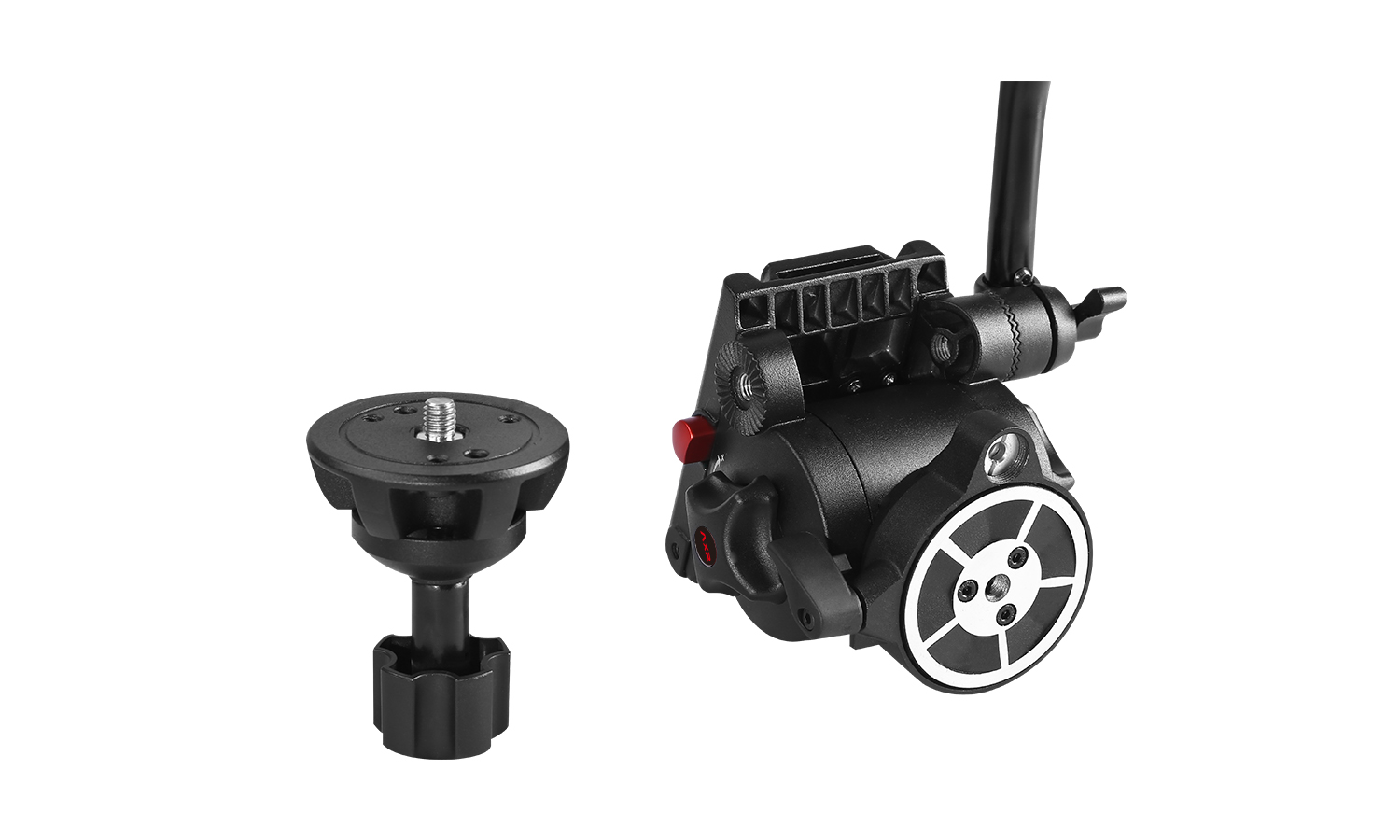

Bowl Size | 75mm |
Tilt Range | -45°/+90° |
Temperature Range | -30℃/+60℃ |
