Compatible with 65mm bowl size tripod
8.8lbs Weight Capacity
Adjustable Tilt Drag
Fixed counterbalance system

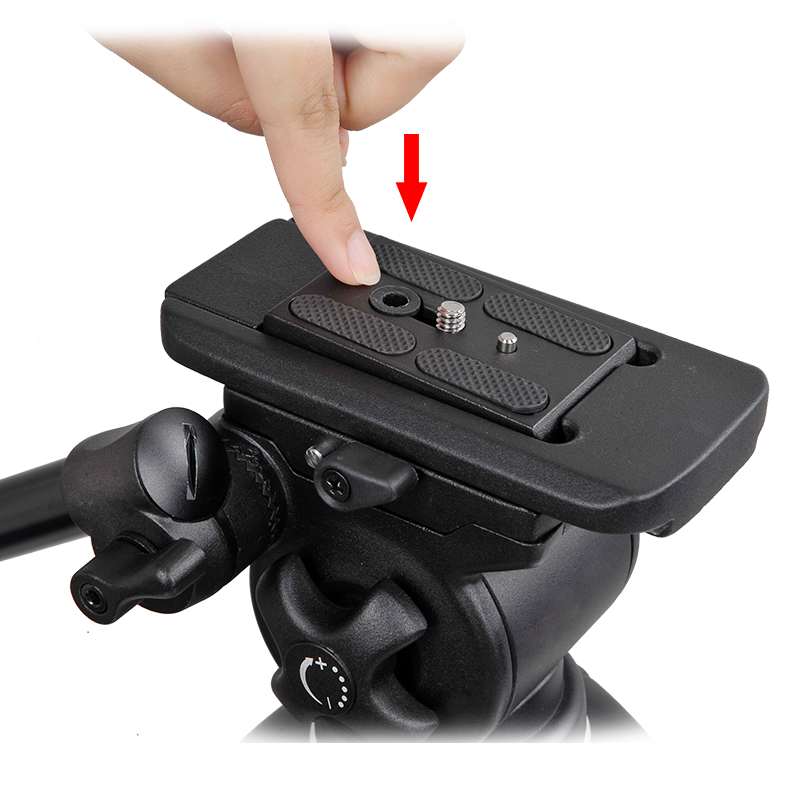

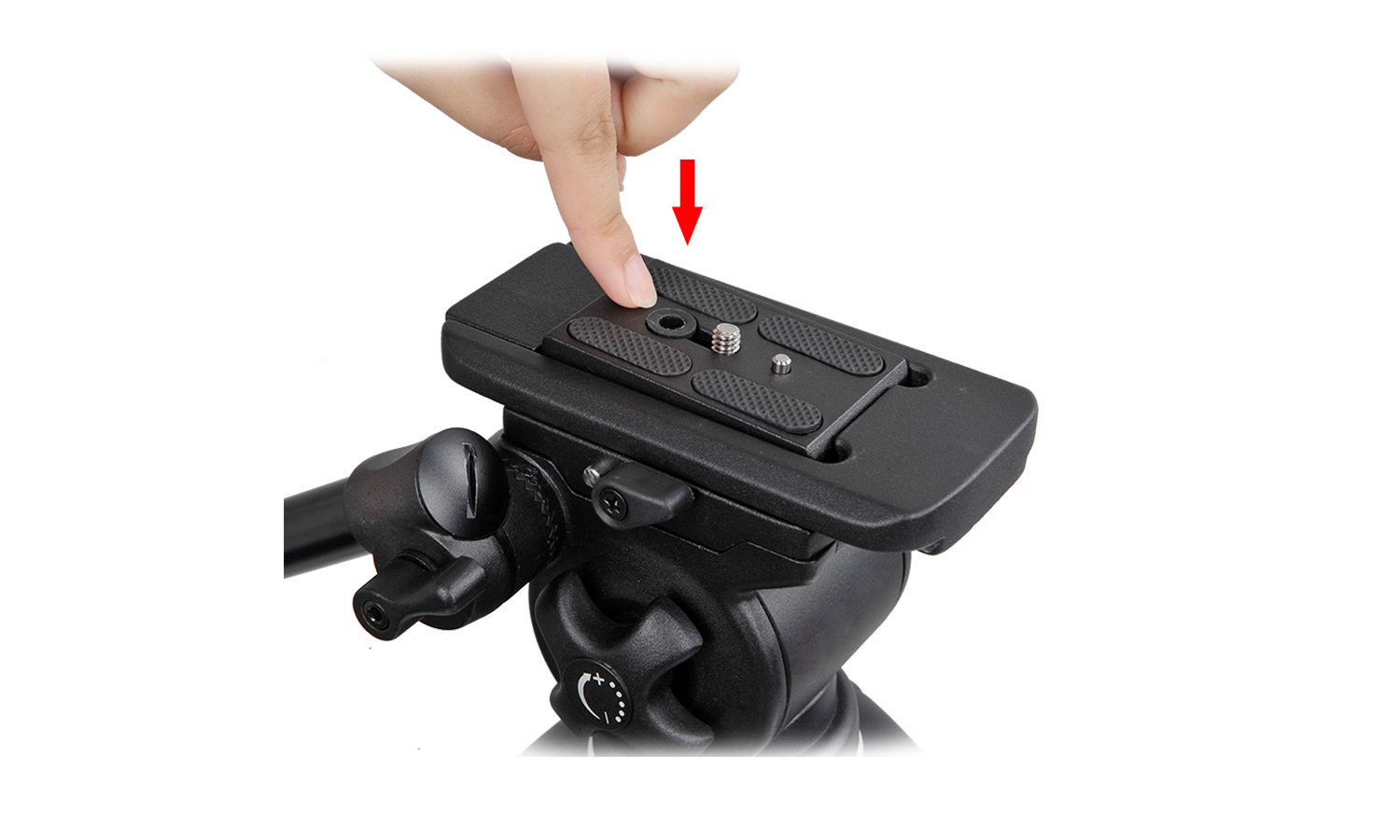

Small and exquisite quick release plate
Two rosette pan bar mounts
Separate pan/tilt locks and tension knobs
Bubble level

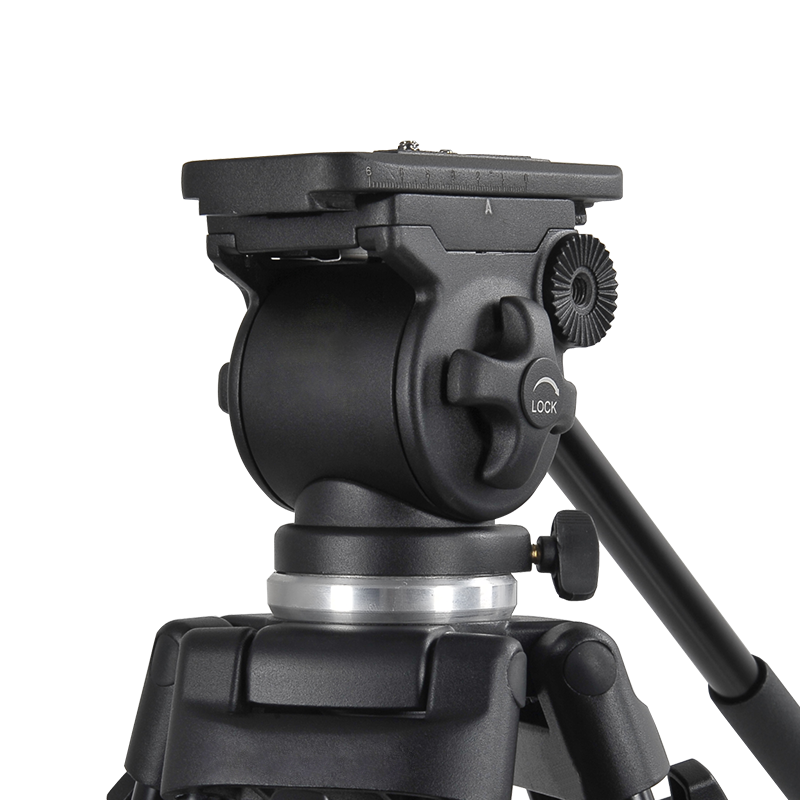

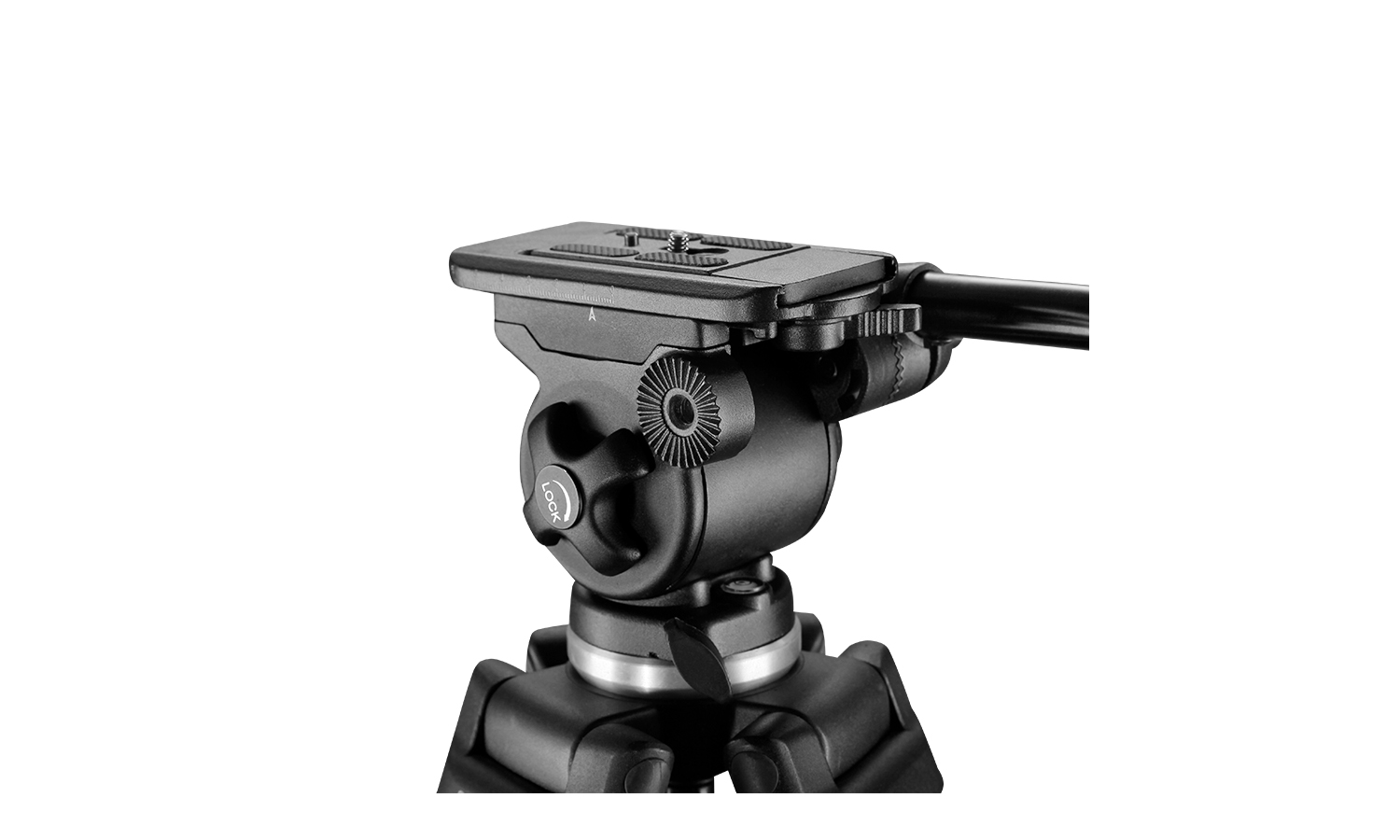

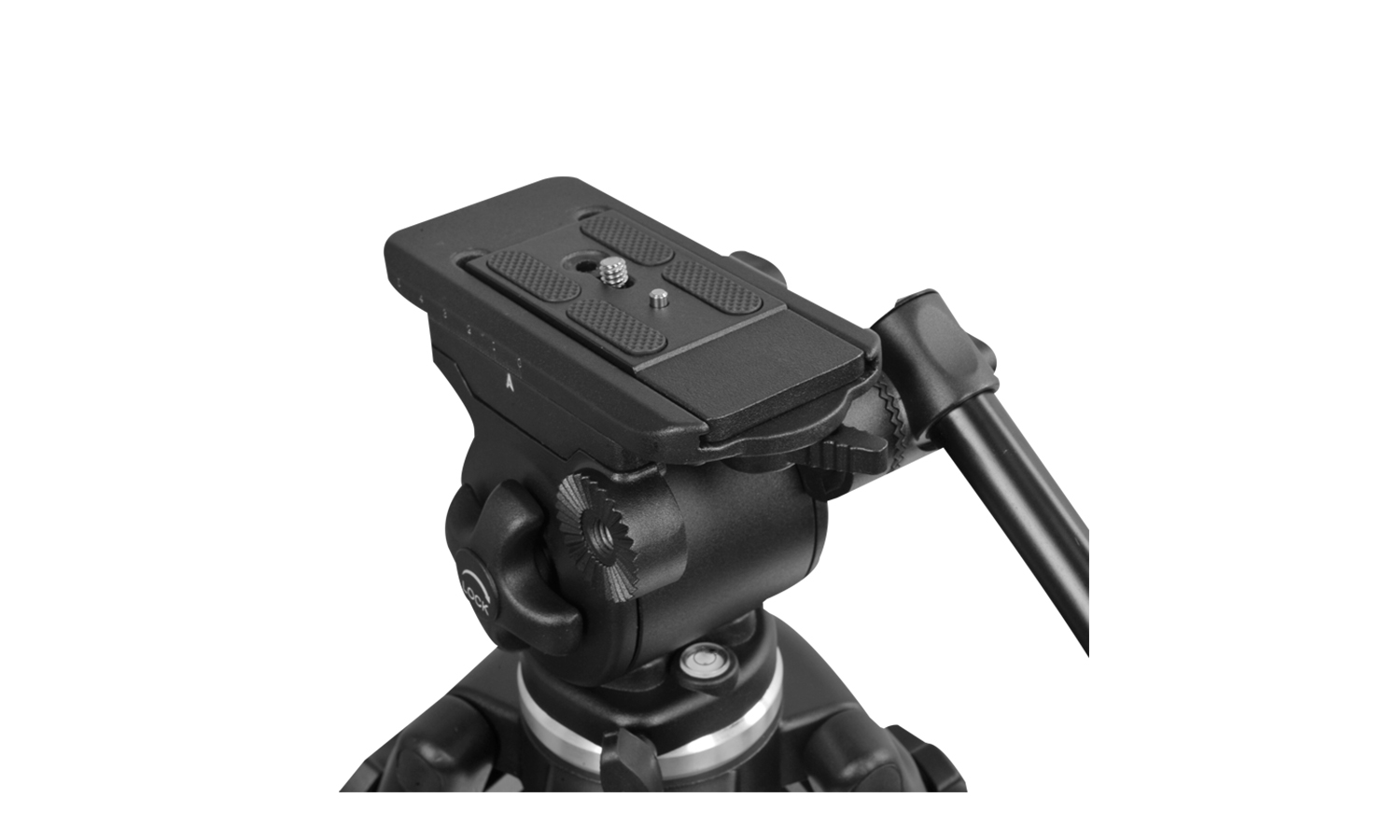

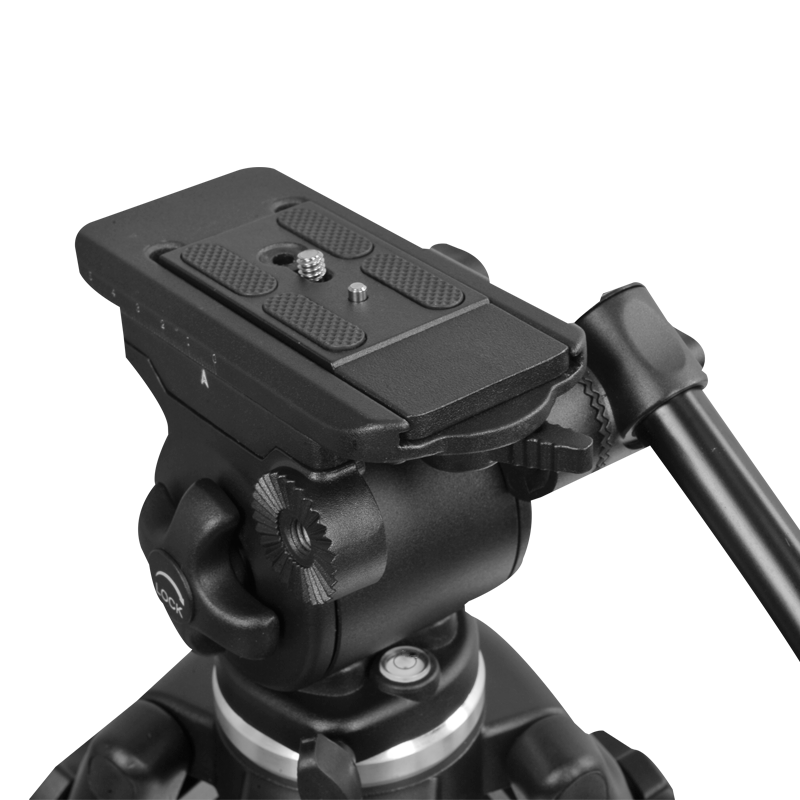

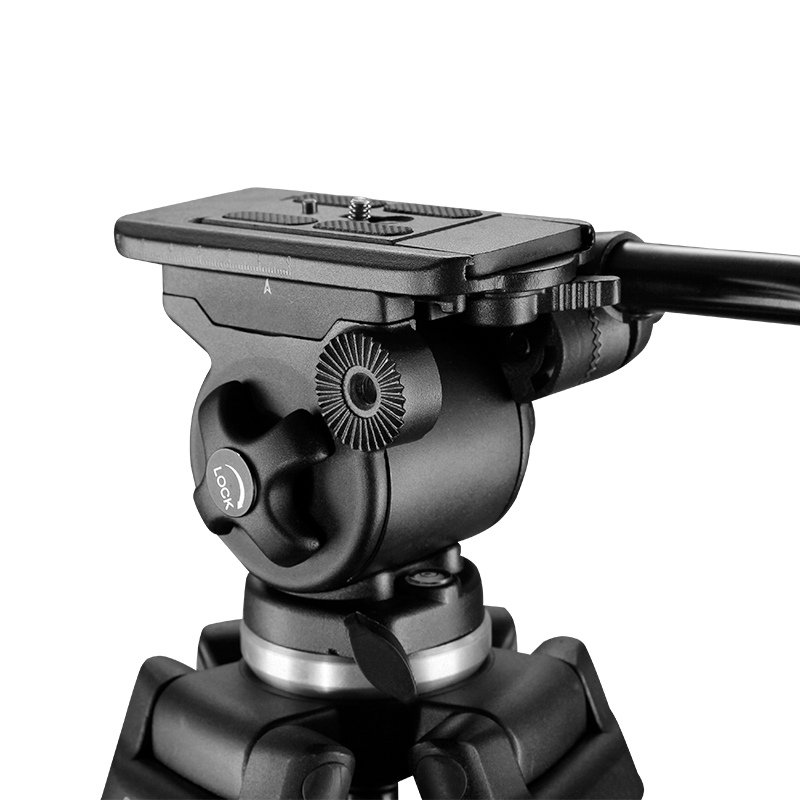

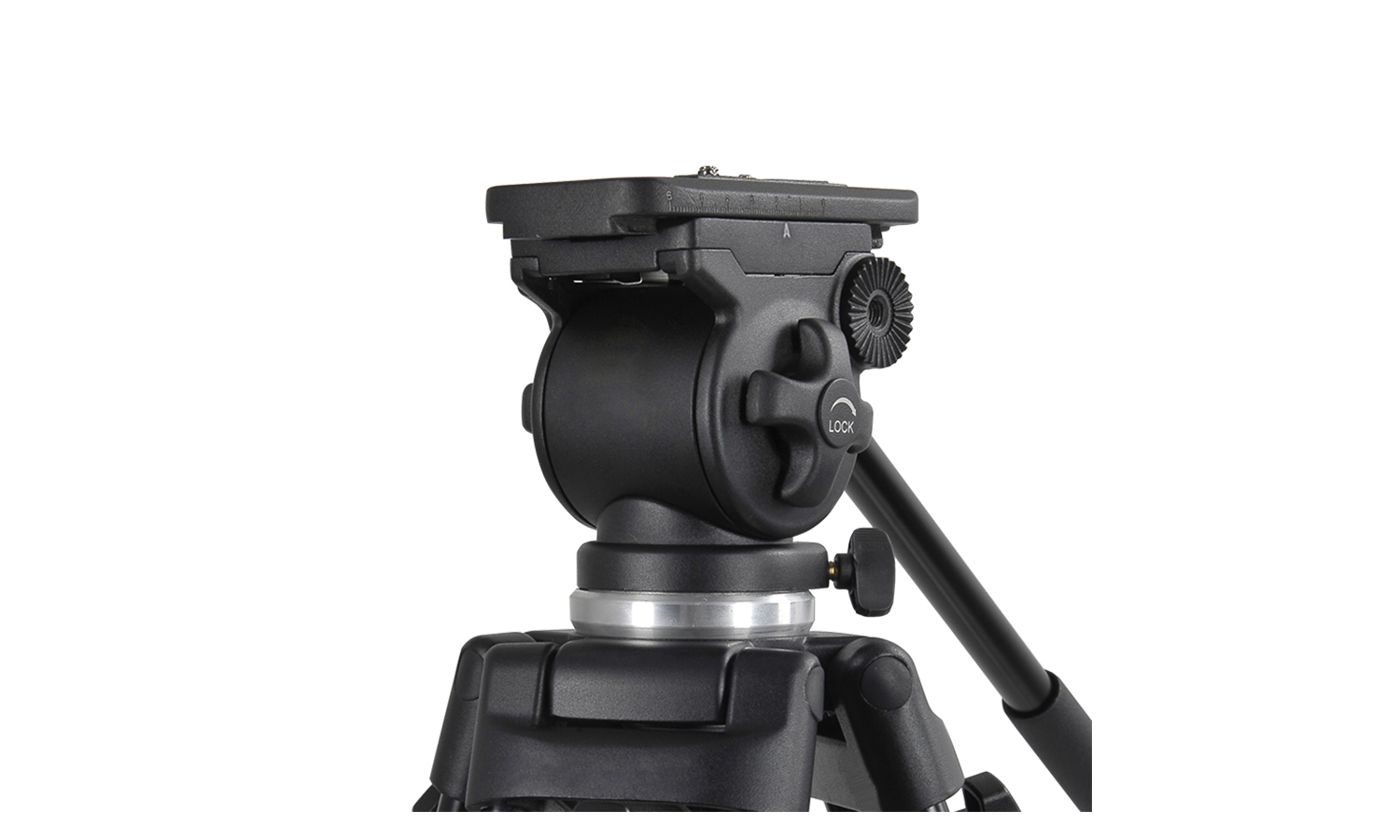

The AH500 from AXRTEC is compatible with 65mm bowl size tripod, ideal for latest camcorder and HDSLR cameras. It features fixed counterbalance system and adjustable tilt drag for your smooth movement. An included small and exquisite plate can be snapped in the plate base for your quick install. Also, one 3/8 screw will be packed with the fluid head. Separate pan/tilt locks and tension knobs facilitate your precise operation. There are two rosette pan bar mounts, so an attached pan bar can be installed on the right or left or just for attaching dual handles.
Model | AH500 |
Payload Range | 4.0kg/8.8lbs |
Net Weight | 1300g/2.9lbs |
Counterbalance | Installed |
Grades of Pan Drag | Fixed |
Grades of Tilt Drag | Fixed |
Bowl Size | 65mm |
Tilt Range | -65°/+80° |
Temperature Range | -30℃/+60℃ |
